Versalock Insert Package

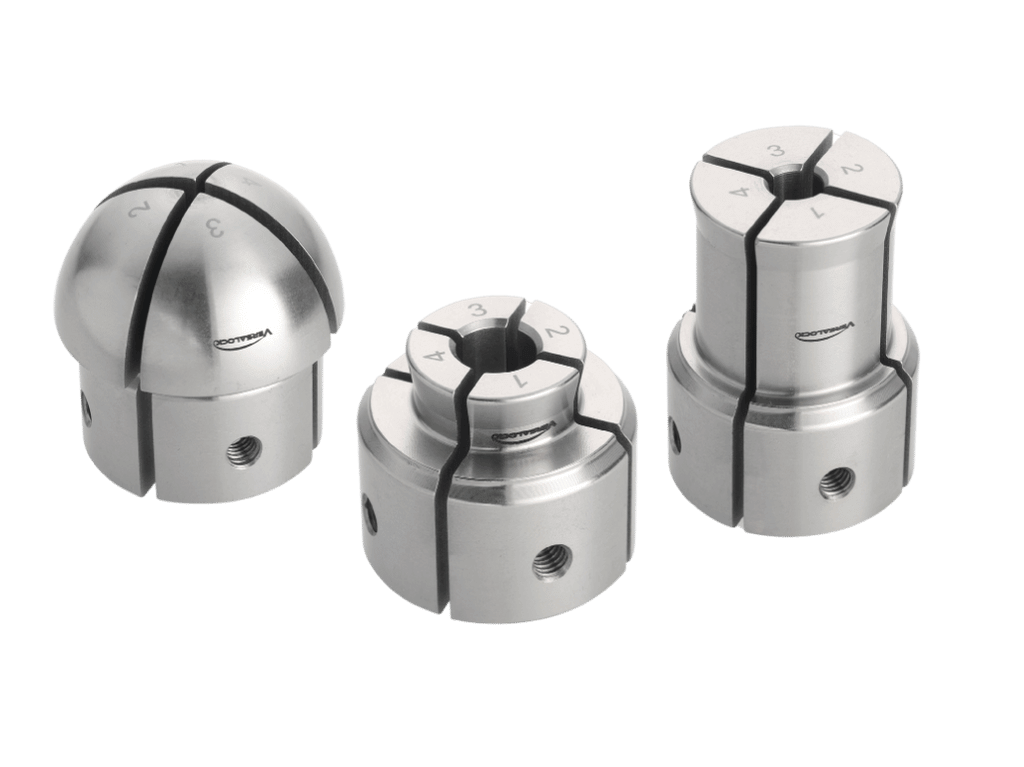

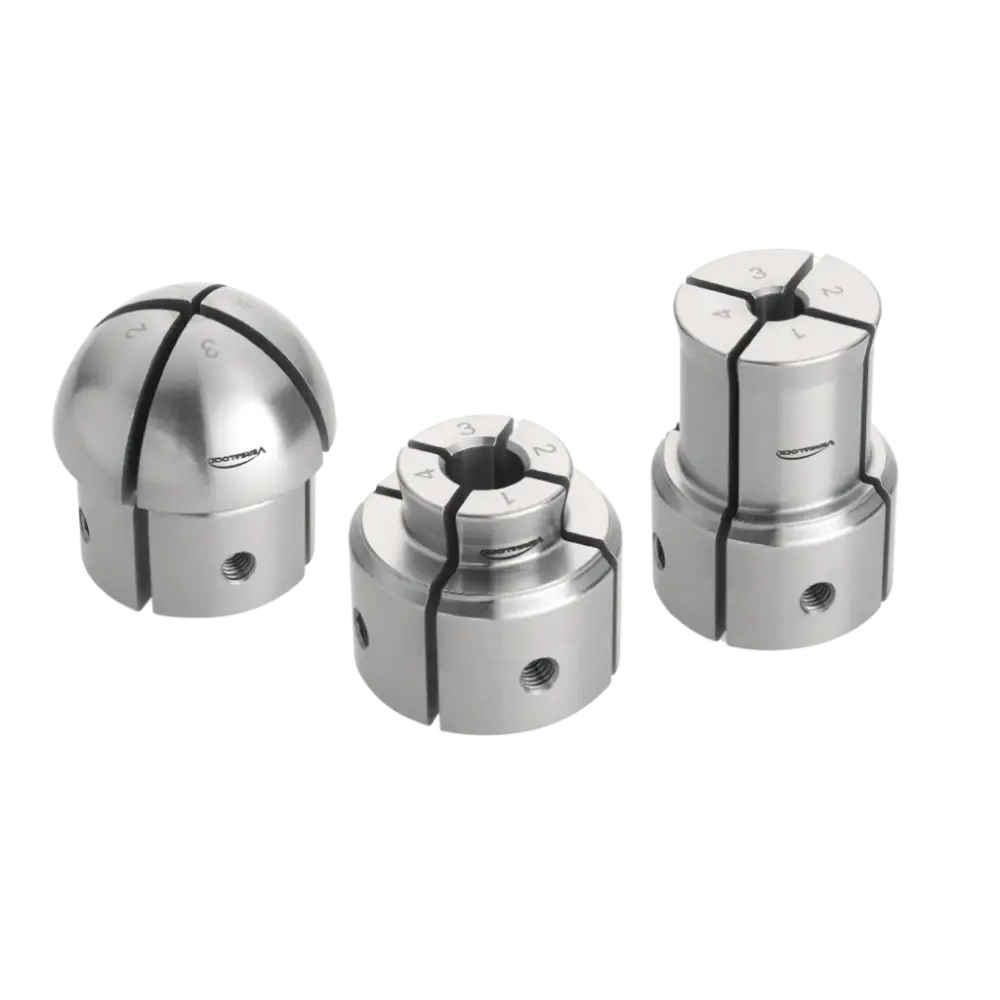

The Versalock Insert Package contains 3 sets of Versalock jaws:
- 62696 VersaLock 35mm Long Dovetail Jaw Inserts
- 62697 VersaLock 28mm Short Dovetail Jaw Inserts
- 62698 VersaLock Dome Jaw Inserts
VersaLock 35mm Long Dovetail Jaw Inserts
Ideal for smaller spigots and recesses, these jaws are incredibly versatile. The length of the jaws offers increased holding power on spigots and gives good access to the rear of workpieces when used in expansion mode. The 10 mm central bore is designed for holding small spigots, making them the ideal jaws for turning drawer handles, finials and other similar-sized projects.
- Expansion: 33 - 53mm
- Contraction spigot: 7 - 27mm
- Contraction square: 6 – 19mm
VersaLock 28mm Short Dovetail Jaw Inserts
These jaws are ideal for use with small workpieces, such as miniature boxes and the 13 mm central bore gives excellent support for small spigots such as those needed for decorative finials and similar projects.
- Expansion: 25 -45mm
- Contraction spigot: 10 - 30mm
- Contraction square: 7 - 21mm
VersaLock Dome Jaw Inserts
These VersaLock Dome Jaw Inserts are specifically designed to hold the smallest, most fragile work pieces, allowing you to get very close to support thin work as safely as possible. They also allow good access to work close to the base of a workpiece without the tool fouling on the jaws.
For maximum support always ensure the workpiece features a spigot long enough to be supported along the full length of the jaws’ internal surfaces.
- Contraction spigot: 0 - 18mm
- Contraction square: 0 -12mm
